theRonda S360-101 AP WH Passive infra-red presence detector , 360° detection angle.

Home page » Product » Sensor THEBEN » Presence detectors » theRonda S360-101 AP WH. Công tắc cảm biến hiện diện, 2 kênh, gắn nổi.

Features of theRonda S360-101 AP WH :

Passive infra-red presence detector for ceiling installation
Circular detection area 360°, up to Ø 9 m (64 m2 )
Automatic motion and brightness-dependent control for lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
Channel A light: relay, 230 V
Operation as fully automatic device
Brightness switching value configurable, teach-in function
Pulse function for staircase light time switch
Channel H, presence: relay, floating e.g. for HVAC control
Time delay configurable
Detection sensitivity configurable
Test mode for checking function and detection area
Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
One of these optional remote controls is required for changing the values and attitudes:
Management remote control SendoPro
Installation remote control theSenda P
Optional user remote control: theSenda S

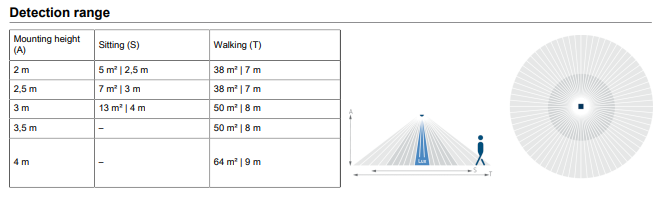

2018-08-08_1004

Operating voltage	230 VAC
Frequency	50 Hz
Installation height	2 – 4 m
Minimum height	> 1,7 m
Installation type	Suface mounted
Colour	White
Switching output	Light \| Presence
Light measurement	Mixed light measurement
Setting range brightness	30 – 3000 lx
Light switch-off delay	10 s - 60 min
Lamps	Incandescent/halogen lamps fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load	2300 W
Inrush current	max. 400 A / 200 µs
LED lamp < 2 W	25 W
LED lamp 2-8 W	70 W
LED lamp > 8 W	80 W
Type of connection	Screw terminals
Max. cable cross section	max. 2 x 2,5 mm²
Size of concealed housing	Ø 55 mm (NIS, PMI)
Detection range	50 m² (ø 8 m \| 360°)
Ambient temperature	-15 °C … +50 °C
Type of protection	IP 54 (when fitted)
