PresenceLight 180. Công tắc cảm biến hiện diện, ánh sáng, gắn tường.

Old Price 3.500.000 vnd
Price 2.490.000 vnd
CO Germany
Warranty 12 Months
The PresenceLight 180 detects persons on slightest movements. Simultaneously, their light sensor measures the brightness in the room and compares it to the pre-set brightness threshold. It switches on the lighting in case of presence and insufficient brightness, and off in case of absence or sufficient brightness. Brightness threshold and switch-off time is adjustable. Pulse function for staircase lighting timer is also available. PresenceLight 180 is the presence detector of choice for use in corridors, transit zones and wet zones (IP 54), and suitable for fluorescent, compact fluorescent, halogen, incandescent lamps and LEDs.

Features of PresenceLight 180 :

Presence detector (PIR)
Detection area 180°
Wall installation;
Mixed light measurement, suitable for switching the following types of lamp: Fluorescent lamps (FL/PL), halogen and incandescent lamps as well as LEDs;
Light switch output (relay, 230 V);
Automatic lighting control;
Lighting control with light threshold value and self-learning switch-off delay;
Pulse function for staircase time switch;
Can be configured remotely;
The switching behaviour of the presence detector is controlled by presence and light;
The self-learning switch-off delay adjusts to occupants' behaviour;
The pulse function is for controlling a staircase time switch;
Test operation mode checks the detection area and installation;
The parameters can either be set using the potentiometer or via the optional service remote control SendoPro 868-A.

PresenceLight_180

Operating voltage	230 V AC
Frequency	50 Hz
Installation height	1.6 – 2.2 m
Installation type	Wall installation
Colour	White
Switching output	Light
Stand-by consumption	~0.9 W
Light measurement	Mixed light measurement
Setting range brightness	10 – 1500 lx
Light switch-off delay	Pulse (0,5 s), 10 s-20 min
Type of contact light	Relay 230 V
Lamps	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Resistive load	1400 W
Incandescent/halogen lamp load	1200 W
Compact and flourescent lamps	960 VA (cos f = 0,8), 580 VA (cos f = 0,5)
Inrush current	max. 250 A / 200 µs
Energy saving lamps	10 x (1 x 58 W), 5 x (2 x 58 W), 16 x (1 x 36 W), 8 x (2 x 36 W), 16 x (smaller than 36 W)
LED lamp < 2 W	25 W
LED lamp 2-8 W	70 W
LED lamp > 8 W	80 W
Type of connection	Screw terminals
Max. cable cross section	2 x 2,5 mm²
Mounting plate	70 x 70 mm
Size of concealed housing	Ø 55 mm (NIS, PMI)

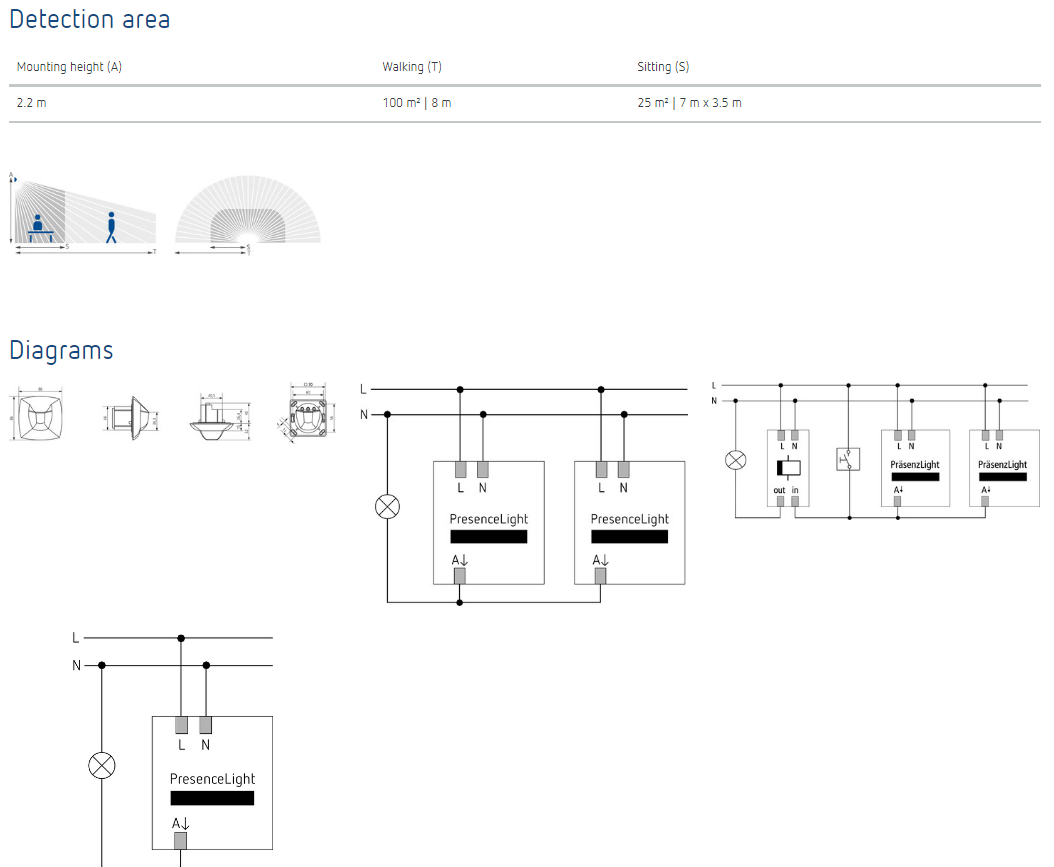

Detection range	100 m² (ø 16 m \| 180°)
Ambient temperature	-20°C ... 50°C
Type of protection	IP 54
