thePrema S360-100 UP WH. Cảm biến hiện diện, 1 kênh, 7x7m, trần chìm.

thePrema S360-100 UP WH. Cảm biến hiện diện, 1 kênh, 7x7m, trần chìm.

  • 7.913.000 vnd
  • 6.330.000 vnd
  • Hungary
  • 12 month
  • The Prema S360-100 is a ceiling mounted infrared sensor, which can operate fully automatically in motion and in the surveillance area. The sensor has two outputs that can control simultaneously the lighting system and the air-conditioning system. With the ability to measure synthetic light, the product can be used to control a variety of lamps. Sensitivity, brightness and on / off time parameters can be easily adjusted according to user requirements.

360 ° scanning angle, maximum scanning radius of 4.5m
Light on / off switch and auto-adjust for motion and brightness
General lighting function, which can control a variety of lamps: fluorescent lamps, halogen lamps / incandescent lamps and led lights.
Relay output 230V
Adjustable brightness on and off, which features brightness of the external environment
Adjustable sensitivity and on-off time
Features pulse generator
Can be put into operation immediately according to the manufacturer default settings
There is a test mode to test the scanning feature and range
Can be adjusted by Remote

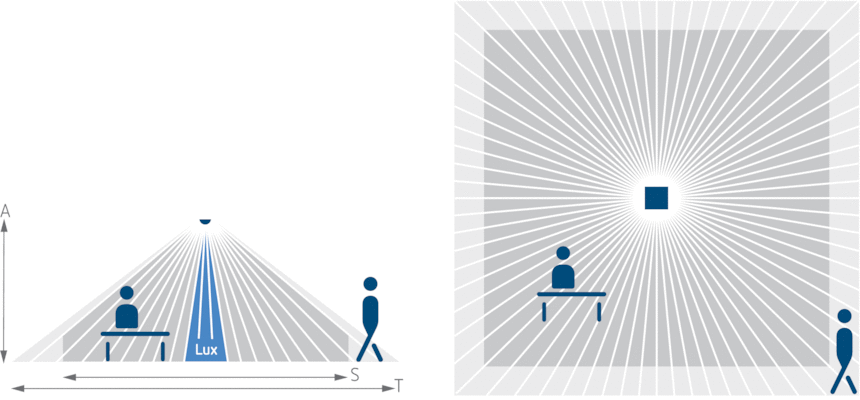

image.detection_area.lightbox_IM0001667.EPS

Name ThePrema S360-100 UP WH - Infrared Sensor

  Passive infrared detector detection system

  Principle of operation Turn on lights are fully automatic in presence and brightness

  Scan area detection area up to 64 m², 360 °

  Illumination threshold 5 ~ 3000 lux

  Time delay 10 seconds ~ 60 minutes

  IP40 sealing

  Installation Mounting the ceiling

  Height 2 ~ 3m

  Operating environment 0 ° C ~ 50 ° C

  Operating Voltage 230 VAC ± 10%

  Frequency 50 Hz

  Power 0.5 W

  Control lamps are fluorescent lamps, halogen / incandescent, Compact lamps, Led lights

  Maximum load capacity Halogen lamps / incandescent lamps: 2300W

  Compact lamp / fluorescent lamp: 1150 VA (cos φ = 0.5)

  Led lights: (<2W) 25W / (2-8W) 70W / (> 8W) 80W

  Color, shape White. Compact

  Manufacturer Theben - Germany
