Home page » Product » Sensor THEBEN » Time switches » SIMPLEXA 602. Công tắc thời gian KTS, hàng tuần, 2 Kênh, 1 phút, pin 3 năm.

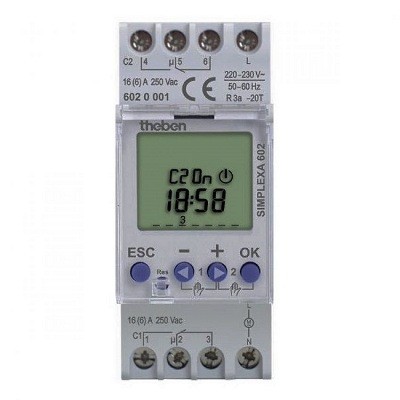

SIMPLEXA 602. Công tắc thời gian KTS, hàng tuần, 2 Kênh, 1 phút, pin 3 năm.

Price Liên hệ
CO Germany
Warranty 12 month
Simplexa602 is an electronic timer that automatically switches on and off for electrical appliances according to the actual clock, with a cycle of one week and automatically repeating the cycle. Or set to work in 24 hour cycles and repeat daily. Minimum installation time is 1 minute. Application: Automatic bell ring for school, office, office with accurate time every minute (note: must integrate a 60 timer paper relay to adjust the ringing time as you want). Timely irrigation of plants, orchards with optional time, minimum 1 minute (fitted with electromagnetic valve). Illumination of lighting for advertising lights, street lights, workshops ...

Description

• 2 channels
• 110–120 V or 220–230 V
• Daily and weekly program
• 56 memory locations
(28 memory locations per channel)
• Permanent ON/OFF switching
• Large LCD display
• Operation via 4 buttons in a row
– Short text and symbols for menu selection
– First day of the week can be selected
– Choice of 24 hour or 12 hour AM/PM time format
• Easy programming of individual days and set
blocks of weekdays
• Automatic summer/winter time correction option
– Date rule options for Europe, USA, Canada,
Israel, New Zealand and Iran
– Additional date rule option can be set as required
– Changeover can be set according to fixed date
• Extended temperature range –20 °C to +55 °C
• Extremely accurate: ± 1 s/day
• Clear plastic cover
• Sealing option
• 2 floating two way switches 16 (6) A/250 V~
• Screw terminals

There are 2 independent on / off timer outputs

Digital format for the whole week

Large LCD screen.

Voltage 220 ~ 230VAC, 50 ~ 60 HZ

Load capacity: with 1400W resistor load, with inductance (electric motors, fluorescent lamps, ..) about 800W

56 memories (28 sets per channel), 14 installation cycles per channel.

Installation time is at least 1 minute.

Select a week or individual day.

Battery 3 years (rechargeable).

ON-OFF-AUTO mode

Switch 1NO-1NC

Rail mounting design
