TR 608 top2 S. Digital time switch, weekly / 1 minute, One channel, memory card support.

Home page » Product » Sensor THEBEN » Time switches » TR 608 top2 S. Công tắc thời gian KTS, hàng tuần/1 phút, 1 kênh, hỗ trợ thẻ nhớ.

Description

■ Digital time switch with weekly program
■ 1 channel
■ 56 memory locations
■ DuoFix spring terminals
■ For 2 conductors each
■ Wire or strand (with or without wire end sleeve)
■ Wire diameter: 0.5 - 2.5 mm2
■ Button for releasing plug-in connection
■ Text-oriented user guidance in display
■ Preset date and time
■ fully operable without mains connection
■ Interface for OBELISK top2 memory card (PC programming)
■ 2. insertable switching program
■ Copying programs
■ Storing programs
■ 10 year power reserve (lithium battery)
■ ON-OFF switching times
■ Switching preselection
■ Permanent switching ON/OFF
■ Integrated operating hour counter
■ Reset option
■ Service function for monitoring maintenance intervals
■ Holiday program
■ Permanent switching ON/OFF
■ PIN coding
■ Automatic summer/winter time changeover
■ can be deactivated
■ Date rule options are already stored for Europe, the USA and other
countries
■ own date rule options or changeover around set dates are available

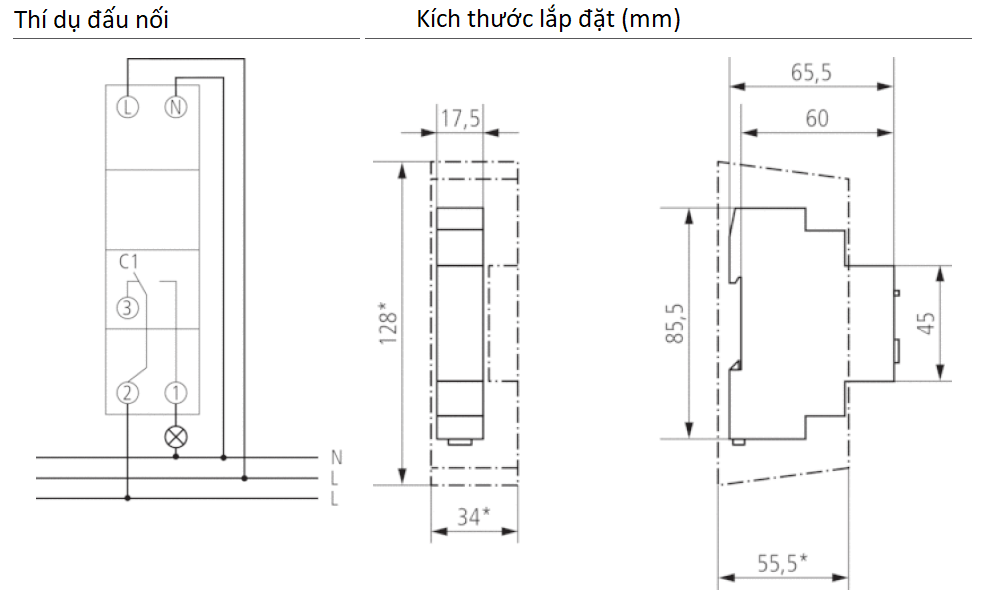

TR_608_top2_S_Connection_n_Dimension

Operating voltage	230 – 240 V AC
Frequency	50 – 60 Hz
Width	1 modules
Installation type	DIN rail
Type of contact	Changeover contact
Switching output	Phase-independent
Opening width	< 3 mm
Program	Weekly program
Number of channels	1
Number of memory locations	56
Power reserve	10 years
Switching capacity at 250 V AC, cos φ=1	16 A
Switching capacity at 250 V AC, cos φ =0,6	4 A
Incandescent/halogen lamp load 230 V	1000 W
Energy saving lamps 230 V	30 W
LED lamp < 2 W	6 W
LED lamp 2-8 W	60 W
LED lamp > 8 W	60 W
Fluorescent lamp load (conventional) not corrected	1000 VA
Fluorescent lamp load (conventional) series-corrected	1000 VA
Fluorescent lamp load (conventional) parallel-corrected	80 W 12 μF
Switching capacity min	~10 mA
Shortest switching times	1 min
Time accuracy at 25 °C	typical ± 0,25 s/day (quartz)
Time basis	Quartz
Stand-by consumption	~0,4 W
Memory card supplied	-
Test approval	VDE
Type of connection	DuoFix spring terminals
Externe Antenne anschließba	-
Keyboards	4 touch buttons, 1 reset button
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Type of protection	IP 20
Protection class	II according to EN 60 730-1
Voltage	230 V AC
Ambient temperature	-25 °C ... +55 °C
