PresenceLight 360. Cảm biến hiện diện, 360 độ, 7x7m, gắn trần, chìm.

PresenceLight 360. Cảm biến hiện diện, 360 độ, 7x7m, gắn trần, chìm.

  • Liên hệ
  • Theben- Germany
  • 12 months
  • PresenceLight 360 - passive infrared and light sensor, provides features to control lighting automatically, turn on the lights when it gets dark and have someone turn the lights off after people leave a time or when the light was enough. The device can detect people based on the slightest movement.

Features of presenceLight 360 :

  • Presence detector (PIR)
  • Square detection area
  • Ceiling mounted
  • The square detection area allows accurate and simple planning
  • Mixed light measurement
  •  Light switch output (relay, 230 V)
  • Automatic lighting control
  • Lighting control with light threshold value and self-learning switch-off delay
  • Pulse function for staircase time switch
  • Can be configured remotely
  •              The switching behaviour of the presence detector is controlled by presence and light
  •              The self-learning switch-off delay adjusts to occupants' behaviour
  • The pulse function is for controlling a staircase time switch
  • The presence detector has a mixed light measurement and is suitable for switching the following types of lamp:Fluorescent lamps (FL/PL), halogen and incandescent lamps as well as LEDs
  • Test operation mode checks the detection area and installation
  • The parameters can either be set using the potentiometer or via the optional service remote control SendoPro 868-A

PresenceLight_360

Operating voltage  230 VAC
Frequency 50 Hz
Installation height 2 – 3 m
Installation type Ceiling installation
Colour White
Switching output  Light
Power consumption  ~0,7 W
Light measurement  Mixed light measurement
Setting range brightness 10 – 1500 lx
Light switch-off delay Pulse (0,5 s), 10 s-20 min
Type of contact light  Relay 230 V
Lamps

Incandescent/halogen lamps

fluorescent lamps

Energy saving lamps

LEDs
Resistive load  1400 W
Incandescent/halogen lamp load  1200 W
Compact and flourescent lamps 960 VA (cos f = 0,8), 580 VA (cos f = 0,5)
Inrush current max. 250 A / 200 µs

Compact and flourescent lamps

(Number of electronic ballasts)

10 x (1 x 58 W), 5 x (2 x 58 W),

16 x (1 x 36 W), 8 x (2 x 36 W),

16 x (smaller than 36 W)
LED lamp < 2 W  25 W
LED lamp 2-8 W 70 W
LED lamp > 8 W  80 W
Type of connection  Screw terminals
Max. cable cross section 2 x 2,5 mm²
Mounting plate 70 x 70 mm
Size of concealed housing  g Ø 55 mm (NIS, PMI)

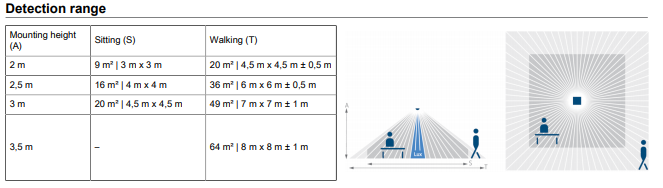

Detection range 49 m² (7,0 x 7,0 m)
