  • The PIR-T15WE is a high performance triple mirror passive infrared detector designed for both indoor and outdoor intruder applications. The unique combination of triple mirrors and three twin pyros enable 4 selectable operation modes including Low Position, High Position, Pet Mode, and High Density; for distances up to 15m from a mounting height of 2 to 6m, throughout a full 80 degrees.
PIR-T15WE Triple Mirror Passive Sensor, Features:
  • 4 Operation modes; Low Position, High Position, Pet Mode, and High Density
  • Up to 15m x 80 degree coverage
  • 2m to 6m Installation height (depending on operation mode)
  • High performance triple mirror optical system
  • Precise detection area adjustment function
  • Anti-masking function (PIR-T15AM)
  • Lightning surge protection
  • Suitable for indoor and outdoor use (IP55)

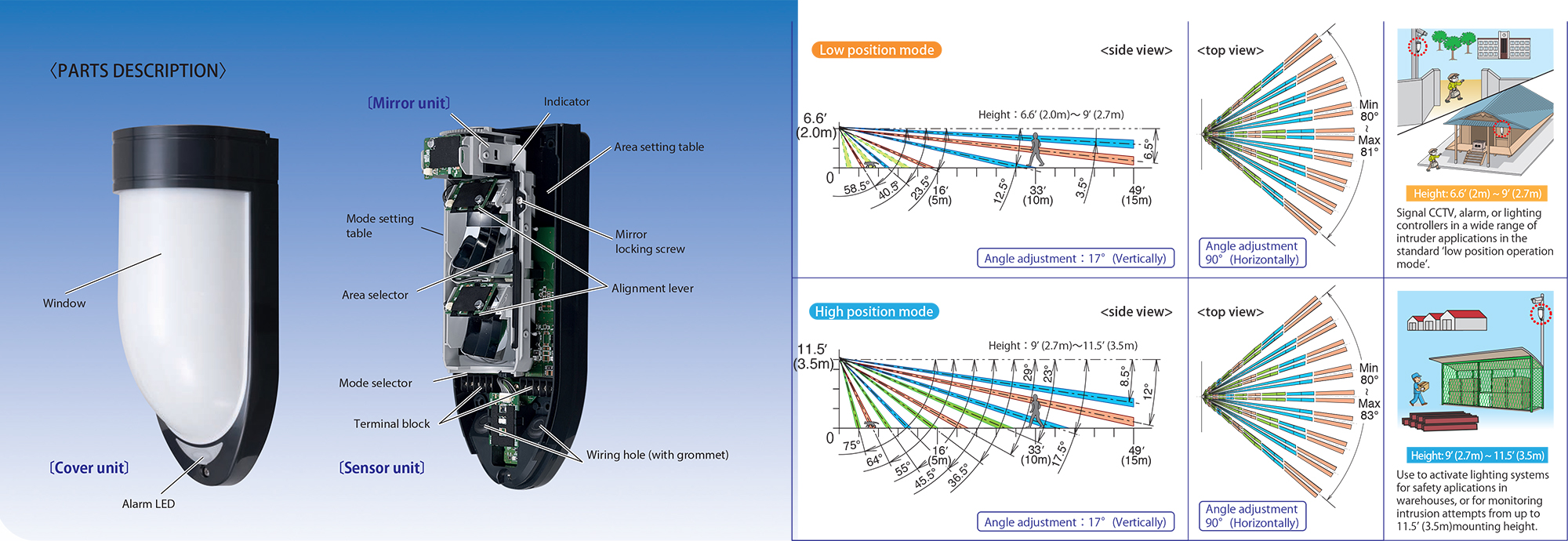

T15WE

 Model  PIR-T15WE(W)
 Detection system  Passive infrared
 Detection area  Wide angle (80°) detection
 Detection distance: 49’(15m), 108 rays (54 pairs)
 Power supply  9 to 28V DC (non-polarity)
 Current consumption  Max. 40mA
 Alarm output  ●Contact method
 Dry semi-conductor contact, N.C./N.O. selectable
 ●Contact operation
 One-shot operation when detecting intrusion
 Continuous output in the event of cover monitor error
 Continuous output in the event of alignment position error
 Continuous output in the event of self diagnosis error
 Continuous output in the event of power voltage error
 Continuous output in the event of long-term diagnosis error
 ●Contact rating
 24V (AC/DC) 0.25A (resistive load)
 (built-in contact protective resistor 3.3Ω)
 External output  ●Contact method
 Dry semi-conductor contact N.O.
 ●Contact operation
 One-shot operation/Off delay operation selectable
 when detecting intrusion
 ●Contact rating
 24V (AC/DC) 0.25A (resistive load)
 (built-in contact protective resistor 3.3Ω)
 Tamper output  ●Contact method
 Dry mechanical contact, N.C.
 ●Contact operation
 Continuous output
 ●Contact rating
 24V (AC/DC) 0.1A (resistive load)
 (built-in contact protective resistor 3.3Ω)
 Alarm LED  ●Red LED
 Blinks* during warm up
 Lights up* when detecting intrusion
 Continuously blinks in the event of cover monitor error
 Continuously lit in the event of alignment position error
 Continuously blinks in the event of self diagnosis error
 Continuously lit in the event of power voltage error
 Continuously blinks in the event of long-term diagnosis error
 (*ON/OFF selectable using the mode selector)
 Memory LED  ●Red LED
 Blinks for 3 minutes during memory display, Auto reset operation either of continuous lighting for 47 minutes or blinking for 50 minutes selectable
 (Blinks to lights/blinks, ON/OFF selectable using the mode selector)
 Functions  Sensitivity selection, Operation mode selection, Alarm memory LED, Selfdiagnosis, Low voltage monitoring, Temperature compensation,Tamper,LED area checker, Environmental adjustment ,Creep zone detection,Walk test mode, Near area cancellation, Long-term diagnosis
 Mounting positions  6.6ʼ to 20ʼ(2.0 to 6.0m) (varies depending on the operation mode)
 • Low position mode : 6.6ʼ to 9ʼ(2.0 to 2.7m)
 • High position mode : 9ʼ to 11.5ʼ(2.7 to 3.5m)
 • Pet mode : 8.3ʼ to 10ʼ(2.5 to 3.0m)
 • High density mode : 6.6ʼ to 20ʼ(2.0 to 6.0m)
 Area angle adjustment range  Horizontal direction : 90° (by 5°pitch)
 Vertical direction : 17° (no stage adjustment)
 Ambient temperature range  25～+55℃(no condensation and freezing)
 Installation place  Indoor/outdoor wall surface
 * Can be mounted on poles and ceilings (or under eaves) using optional accessories
 IP rating  IP55
 Connections  Terminals (M2.6 self up terminal)
 Weight  Approx. 600g
 Appearance  Body: ASA resin (gray), Window: PE resin (white)
