PB-IN-100AT - Đầu báo hồng ngoại 4 tia chống trườn bò, 100m.

PB-IN-100AT - Đầu báo hồng ngoại 4 tia chống trườn bò, 100m.

  • 12.712.920 vnd
  • 10.594.100 vnd
  • Takex/ Japan
  • 12 Month

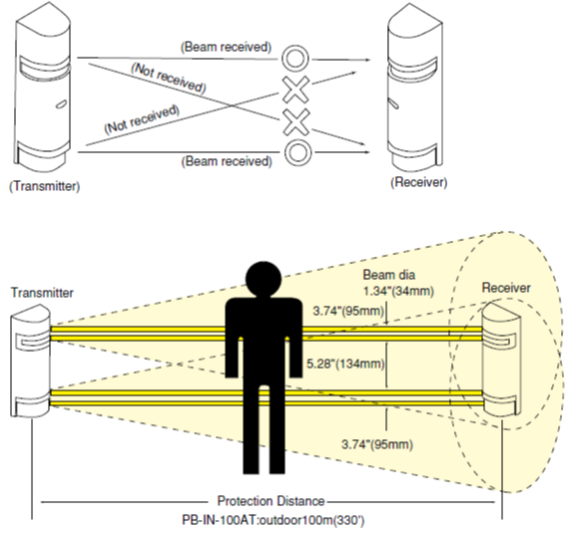

  • The PB-IN-100AT is designed with high security applications in mind, where attempts to crawl through a portion of the beam result in an alarm condition. Through CPU processing, the upper receiver selects the beam from the upper transmitter and the lower receiver selects the beam from the lower transmitter, creating an AND/OR-gated type detection system.

PB-IN-100AT Photoelectric Beam Sensor, Features:

  • Anti-crawl beam for high-security applications
  • Independent activation of upper or lower beams
  • Dual response time system
  • Double modulation for unsurpassed light immunity
  • 4 selectable beam channels to prevent crosstalk
  • Environmental monitoring circuit
  • Dynamic auto-gain lock (AGL)
  • 50,000 lux sunlight immunity
  • IP55 housing







PB-IN-100AT_beam_chong_truon_bo

 Model  PB-IN-100AT
 Product name  Photoelectric beam sensor
 Infrared beam  LED pulsed beam, Double modulation
 Detection system   Simultaneous breaking of 4 beams
  or Upper 2 beams interruption
  or Lower 2 beams interruption
 Infrared beam  LED pulsed beam, Double modulation
 Protection distance  Outdoor 100m (330ft) or less
 Indoor 200m (660ft) or less
 Max. arrival distance  Outdoor 1000m (3300ft) or less
 Indoor 1000m (3300ft) or less
 Response time  Dual response time system : 35-500msec. (AND)
 100, 200, 300, 500msec. (OR)
 Power supply  12V to 30VDC (Non-polarity)
 Current consumption  785mA or less at protection
 Alarm output  Dry contact relay output 1c
 Reset : Interruption time + off delay
 Contact capacity : 30V AC/DC, 1A or less
 Environmental output  Dry contact relay output 1c
 Action : Output when weather conditions worsen
 Contact capacity : 30V AC/DC, 1A or less
 Attenuation LED  Red LED (Receiver)
 ON : when beam is attenuated.
 Alarm LED  Red LED (Receiver)
 ON : when an alarm is initiated.
 Functions  Modulated beam frequency selection (4-Channel)
 Environmental module
 Beam power selection
 Alarm memory indication
 Programmed AGC
 Auto-gain lock function
 Sound check : Audible check of beam level
 Monitor jack output
 Frost proof cover
 Beam adjustment  Horizontal: ±90° / Vertical: ±10°
 Ambient temperature range  -35°C to +66°C (-31°F to +151°F)
 Mounting position  Outdoor (Perimeter protection)
 Wiring  Terminals
 Weight  Transmitter : 1200g (42oz)/ Receiver : 1300g (45.5oz)
 Appearance  Resin (wine red)

*Specifications and design are subject to change without prior notice.
