PB-50F Photoelectric Beam Sensor, Outdoor 50m

Home page » Product » Alarm System » Beam Sensor (Takex-Japan) » PB-50F - Đầu báo hồng ngoại 4 tia, 50m ngoài trời.

PB-50F Photoelectric Beam Sensor, Feature:

Synchronised Quad Beams for maximum stability in severe weather conditions
Double Modulated beam for unsurpassed immunity to direct and reflected sunlight, vehicle headlights and other light sources.
Built-in view finder and monitor jack output for easy beam alignment
180 degree rotating optics for increased installation flexibility
Automatic Gain Control circuit

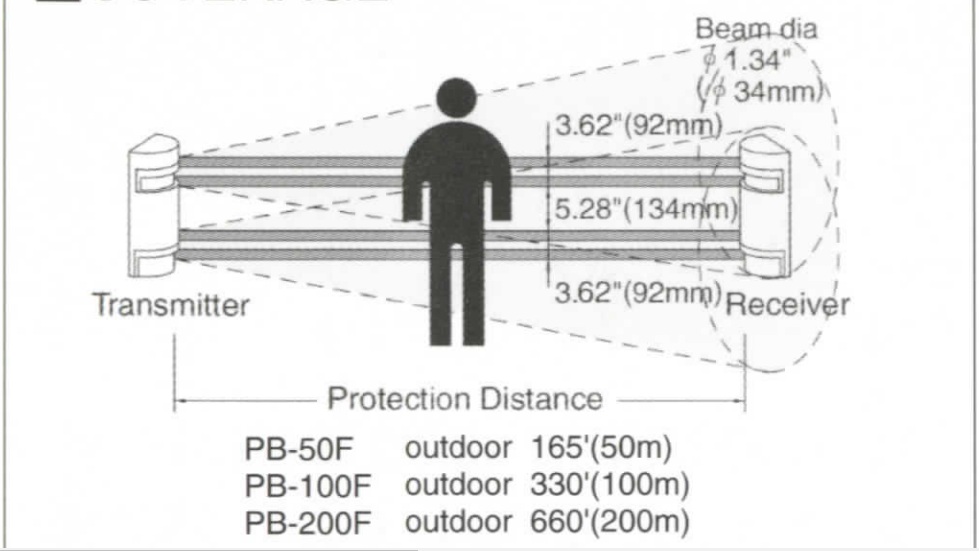

Pb-50F-mota

Model	PB-50F
Product name	Photoelectric beam sensor
Detection system	Simultaneous breaking of 4 beams
Infrared beam	LED pulsed beam, Double modulation
Protection distance	Outdoor 50m (165ft) or less Indoor 100m (330ft) or less
Max. arrival distance	Outdoor 500m (1650ft) or less Indoor 500m (1650ft) or less
Response time	50msec. to 700msec. variable (Standard : 50msec.)
Power supply	12V to 30V DC (non-polarity)
Current consumption	75mA or less
Alarm output	Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less
Tamper output	Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less
Alarm LED	Red LED (Receiver) ON : when an alarm is initiated.
Sensitivity attenuation LED	Red LED (Receiver) ON : when beam is attenuated.
Functions	Sound check : Audible check of beam level Monitor jack output Frost proof cover
Beam adjustment	Horizontal : ±90°,　Vertical : ±10°
Ambient temperature range	-25°C to +55°C (-13°F to +131°F)
Mounting position	Outdoor (IP55)
Wiring	Terminals
Weight	Transmitter : 42oz (1,200g)/ Receiver : 45.5oz (1,300g)
Appearance	Resin (wine red)
