PB-30TK. Đầu báo 2 tia hồng ngoại, 30m, ngoài trời.

PB-30TK. Đầu báo 2 tia hồng ngoại, 30m, ngoài trời.

  • 3.046.560 vnd
  • 2.538.800 vnd
  • Nhật Bản
  • 12 tháng
  • the PB-30TK feature our patented ‘double modulation’ technology giving them an unsurpassed immunity to sunlight and artificial light sources - ideal for protecting windows, doors, fence lines and driveways. Protection distance up to 30m outdoor/ indoor 60m.
Hướng dẫn sử dụng

PB-30TK Features:

  • 2 x synchronised high power beams
  • Double modulation for unsurpassed light immunity
  • Auto-gain control (AGC)
  • 50,000 lux sunlight immunity
  • IP54 housing

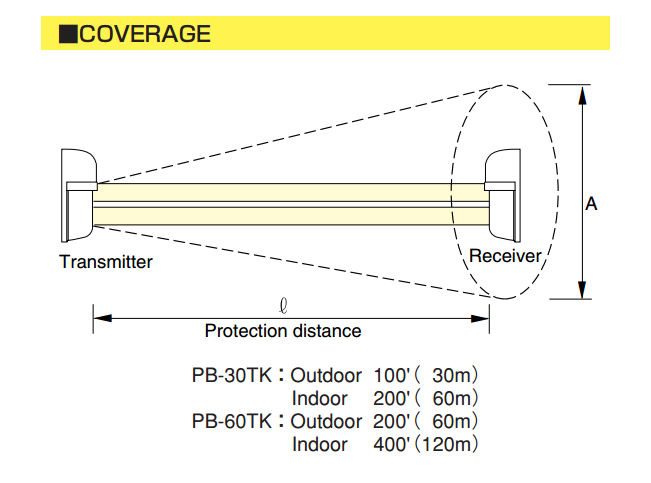

PB30-TK_dc

Model  PB-30TK
 Detection system  Simultaneous breaking of 2 beams
 Infrared beam  LED pulsed beam, Double modulation
 Protection distance  Outdoor 30m or less
 Indoor 60m or less
 Max. beam range (approx.)  300m
 Response time  50msec. to 700msec. (Variable at pot)
 Supply voltage  10V to 30VDC (Non-polarity)
 Current consumption  53mA or less
 Alarm output  Dry contact relay output form C
 Contact action : Interruption time + delay time (1 to 3 sec.)
 Contact capacity : 30V AC/DC, 0.5A or less
 Tamper output  Dry contact relay N/C
 Contact action : Activated when cover is detached
 Contact capacity : 30V AC/DC, 0.5A or less
 Alarm LED  Red LED (Receiver)
 ON : when an alarm is initiated
 Attenuation LED  Red LED (Receiver)
 ON : when beam is attenuated
 Functions  Monitor jack output, AGC circuit, Frost proof cover
 Ambient temperature range  - 25°C to +60°C
 Mounting positions  Indoor / Outdoor
 Wiring  Terminals
 Weight  Transmitter : 380g / Receiver : 400g
 Appearance  PC resin (wine red)

* The specifications are subject to change without notice.
