PB-100F Photoelectric Beam Sensor, Outdoor 100m

Home page » Product » Alarm System » Beam Sensor (Takex-Japan) » PB-100F - Đầu báo hồng ngoại 4 tia, 100m ngoài trời.

Description

PB-100F Photoelectric Beam Sensor, Feature:

4 SYNCHRONIZED HIGH POWER INFRARED [PATENTED]
*4 beams are "and-gated", which helps to prevent false alarms by
falling leaves and small animals.
*Active infrared transmission is exceptionally strong with a
maximum arrival distance ten times greater than the specified
protection distance.
*External light compensation circuit provides excellent tolerance
to sun light, automobile head lights, fluorescent light or mercury
light.

EASY BEAM ALIGNMENT
*Audible signal for alignment
Alignment tone aids in quick set-up of beams. The tone becomes
maximum at the peak beam level.
*Sensitivity attenuation LED lights when beam is attenuated,
which shows low sensitivity.
*Monitor jack output
*Target color
*Wide adjustment (horizontally ±90°,vertically ±10°

RoHS CERTIFIED COMPLIA
Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls, Polybrominated diphenyl ethers.

AUTO-GAIN LOCK
Optimal sensitivity gain is automatically set at any coverage distance within the maximum protection distance. Auto-Gain lock is easily confirmed with sound check.

PROGRAMMED AGC
Sensitivity is automatically increased in bad weather to cope with fog, heavy rain, frost or snow.

ALARM MEMORY
Alarm memory LED located on receiver can be automatically reset.

PROTECTION AGAINST FROST/DEW
Special hoods attached on sensor cover keep beam protection continuing without interruption even when the cover is screened by frost or dew.

OTHER FEATURES
*Tamper output (transmitter and receiver)
*Polycarbonate cover excellent at anti-shock
*Optional accessories

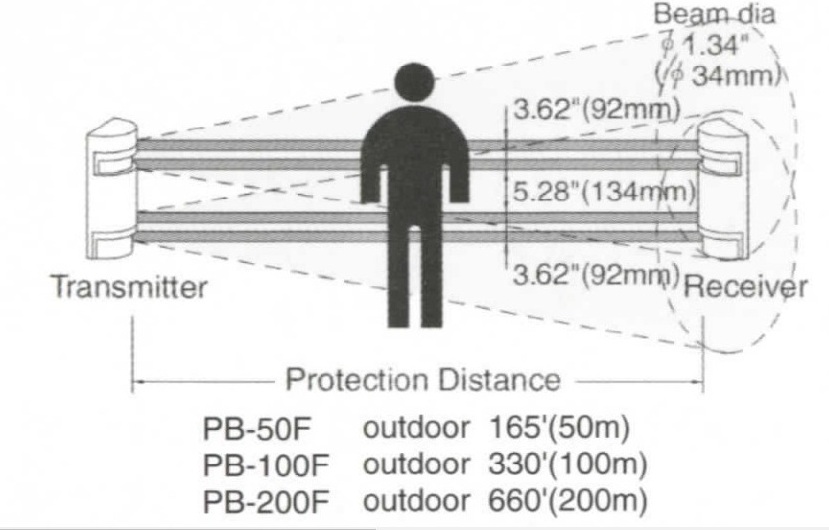

Pb-50F-MT

Model	PB-100F
Product name	Photoelectric beam sensor
Detection system	Simultaneous breaking of 4 beams
Infrared beam	LED pulsed beam, Double modulation
Protection distance	Outdoor 100m (330ft) or less Indoor 200m (660ft) or less
Max. arrival distance	Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less
Response time	50msec. to 700msec. variable (Standard : 50msec.)
Power supply	12V to 30V DC (non-polarity)
Current consumption	75mA or less
Alarm output	Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less
Tamper output	Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less
Alarm LED	Red LED (Receiver) ON : when an alarm is initiated.
Sensitivity attenuation LED	Red LED (Receiver) ON : when beam is attenuated.
Functions	Sound check : Audible check of beam level Monitor jack output Frost proof cover
Beam adjustment	Horizontal : ±90°,　Vertical : ±10°
Ambient temperature range	-25°C to +55°C (-13°F to +131°F)
Mounting position	Outdoor (IP55)
Wiring	Terminals
Weight	Transmitter : 42oz (1,200g)/ Receiver : 45.5oz (1,300g)
Appearance	Resin (wine red)
