PA-7100E Đầu Báo Hồng Ngoại

PA-7100E Đầu Báo Hồng Ngoại

  • 4.507.800 vnd
  • 3.756.500 vnd
  • Takex- Japan
  • 12 Month
  • The PA-7100E "Digital-Quad" passive infrared sensors are the newest line of quad element PIR's, from the originator of quad passive infrared sensors. Each unit contains two dual element sensors which are linked by a digital central processing unit. This results in calculation of a true motion signal in order to initiate an alarm. It can detect a human like pattern definition and reject other potential false alarm causes.
Hướng dẫn sử dụng
Passive Infrared Sensor PA-7100E, Features:
  • Two dual element digital-quad sensors
  • Original CPU architecture controls all functions including signal processing calculations
  • Sensitivity is automatically adjusted relative to environmental temperature
  • Alarm memory function
  • High RFI and EMI immunity
  • Convenient twist-lock base for easy installationPA-7100E
 Model  PA-7100E
 Product type  Passive infrared sensor
 Area  360 degree

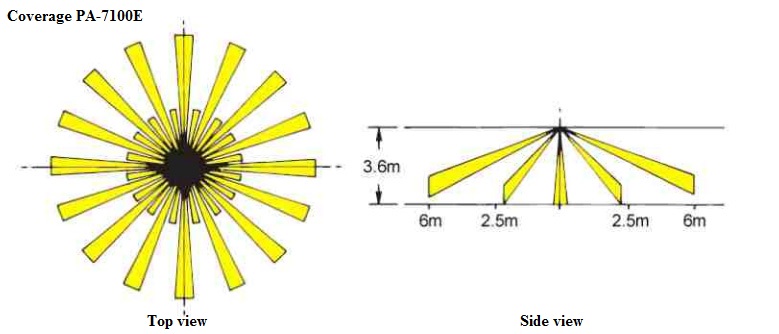

 Coverage  ∅12m (∅40ft) at 3.6m (12ft)
 Sensitive zones  264 (33 sets)
 Mounting position  Indoor ceiling within 3.6m (12ft)
 Supply voltage  9 to 18VDC (non-polarity)
 Current consumption  15mA (at 12V), 20mA (at aim adjustment)
 Alarm output  0.1A, 30V, 1c reset: 2 sec
 Tamper output  0.1A, 30V, 1b
 Memory function  Control at terminal 8: lights up for memory indication
 LED control  Control at terminal 9 or built-in switch
 Weight  330g (11.6oz)
