PA-6820E - Đầu Báo Hồng Ngoại Quét Mành 20m, trong nhà.

PA-6820E - Đầu Báo Hồng Ngoại Quét Mành 20m, trong nhà.

  • 1.290.960 vnd
  • 1.075.800 vnd
  • Takex- Japan
  • 12 Month
  • The PA-6820E ceiling mount indoor PIR sensors combine a discreet compact appearance with outstanding performance at a low price. The sensor can be snapped in and out of the detachable base unit for easy installation in high places.
Features:
  • Super slim and compact design
  • Detachable base unit with snap-in/out sensor design for easy installation
  • Rotating mirror for efficient detection regardless of area setting
  • Sensitivity/pulse count selectable
  • NO/NC contact output

PA-6820E

 Model  PA-6820E
 Product type  Passive infrared sensor
 Detection system  Passive infrared

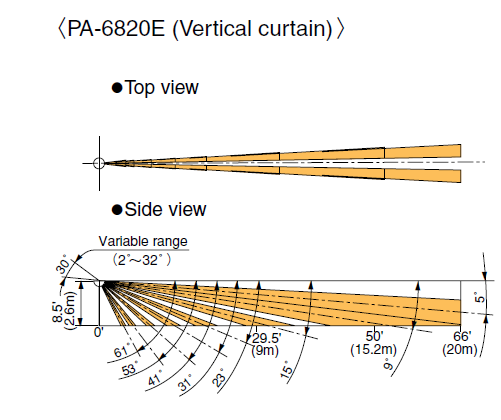

 Coverage  Vertical curtain: 20m (66ft) max.
 Sensitive zone  8 pairs
 Supply voltage  10.5 to 30VDC (non-polarity)
 Current consumption  25mA max.
 Alarm signal  Dry contact (semi-conductor) (NO/NC changeover)
 Reset: approx. 2 sec, 24V (AC/DC) 0.25A
 (Protective resistor 3.3Ω)
 Alarm memory  3 mins. flashing, 47 mins lighting
 Alarm LED  Red: blinking at warm-up
 Lighting at alarm (LED disabled)
 Memory LED  Yellow: blinking at memory activated
 lighting at memory indication
 Adjustment  Horizontally: 25 degrees
 Count changeover  1/2/3/4 changeover
 Ambient temperature  -15°C to +55°C (+5°F to +131°F)
 Mounting position  Indoor ceiling (wall mount with optional BCW-401)
 Wiring connection  Terminals on separate base unit
 Weight  110g (3.85oz)
 Appearance  Body: ABS resin
 Cover: PE resin
 Accessory  Tapping screw: 2pcs
 Sensor locking screw: 1pc
