PA-6412PI. Passive Infrared Sensor, Wide Angle protection

Home page » Product » Alarm System » PIR & Magnetic Switch (Takex- Japan) » PA-6412PI - Đầu báo hồng ngoại, quét 84°×12m, không báo vật nuôi.

Description

MIRROR OPTICS
Parabolic Mirror Optics provides clearly defined detection zones.
Rotatable mirror ensures precise setting of detection range.

PET IMMUNITY
Enhanced Discrimination Technology with our new mirror design "Plus Simulation Software" prevents false detection of animals smaller than 40Lbs (18Kg)

INSECT PROTECTION
The PA-6412PI is reliably sealed against the intrusion of insects, dust and drafts by an efficient dome cover and cable entry sealing device.

SILENT RELAY
Using a photo-mos FET switch for alarm output eliminates mechanical moving parts and results in complete silent operation.

PA-6412PI

Model	PA-6412PI
Detection system	Passive infrared

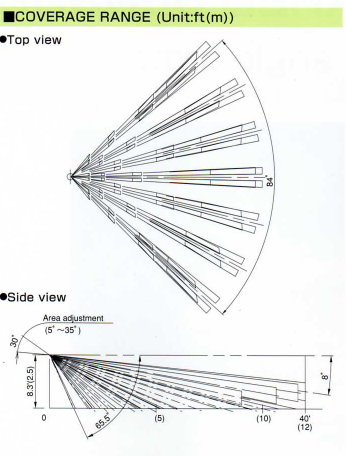

Coverage	Wide angle, 12m (40ft) Max.
Sensitive zone	17pairs (64)
Supply voltage	10.5 to 18V DC (non-polarity)
Current consumption	25mA Max.
Alarm signal	Dry contact (N/C, N/O selectable) Reset: Approx. 2sec., 24V, 0.25A Max. (protective resistance 3.3Ω)
Alarm memory	Auto : 3 minutes flashing, 47 minutes lighting and automatically reset Manual : Manual control
Alarm LED	Red : Flashing at warming up Lighting at alarm (LED disabled)
Memory LED	Yellow : Flashing at memory activated Lighting at memory indication
Adjustment	Vertically 19.5degrees, Horizontally 25degrees (on mounting hole of base)
Count changeover	1/2/3/4 changeover
Ambient temperature range	+5F to +131F (-15C to +55C) without condensation
Mounting position	Indoor ceiling (wall mount with optional attachment BCW-401)
Wiring connection	Terminals on separate base unit
Weight	135g (4.7oz)
Appearance	Body : ABS resin/ Cover : PE resin
Accessory	Tapping screw: 2 pcs/ Sensor locking screw: 1 pce.
