PA-460E. Passive Infrared Sensor, Vertical Curtain 16.5m, Indoor wall

Home page » Product » Alarm System » PIR & Magnetic Switch (Takex- Japan) » PA-460E. Đầu báo hồng ngoại quét mành 16,5m, trong nhà.

Description

HIGH STABILITY
Immunities against Radio frequency, power line noise, Radiation noise and static electricity are improved.

SILENT RELAY
Photo-mos FET switch relay adopted at alarm output.
Completely noiseless by eliminating the movable part which is inside of the relay. At the same time, quick response and long life are maintained.

VARIOUS FUNCTIONS
All the models are equipped with Tamper, Auto-reset memory, photo-mos FET switch.

COVERAGE PATTERNS
Series is available in both wide angle and vertical curtain versions.

CREEP ZONE
Zone focused directly below sensor eliminates typical "dead" area just under unit.

AREA ADJUSTMENT
The coverage pattern can be adjusted to allow for different mounting heights by moving the inner unit.

MODE SELECTOR
Mode selector enables settings very easy.
1. Pulse count switch
PA-450 allows to set for either two or four pulse count to
initiate an alarm output.
2. Alarm LED ON/OFF switch
3. Alarm contact changeover switch
Alarm output is N.O. and N.C. selectable.
4. Memory Switch
Auto-reset memory can be disabled with this switch.

PA-460E

Model	PA-460E
Detection system	Passive infrared

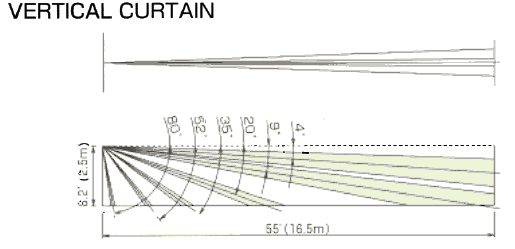

Coverage	Vertical curtain: 16.5m (55ft) max
Sensitive zone	6 pairs
Mounting positions	Indoor use only (ceiling mount with optional BCW-401).
Supply voltage	9 to 18V DC (non-polarity)
Current consumption	25mA Max.
Alarm output	Dry contact relay (N/C, N/O selectable) Reset: Approx. 2sec.30V (AC/DC), 0.1A Max. (protective resistance 3.3Ω buil-in)
Tamper output	30V, 0.1A (NC)
Alarm LED (Red)	Blinking at warm-up Lighting at alarm Lighting at memory activated Lighting at trouble alarm (LED disable)
Coverage adjustment	Vertically 3 steps
Pulse count	2
Alarm memory	3 mins blinking, 47 mins lighting (automatically reset)
Low voltage notice	Dry contact alarm
Ambient temperature	-15°C to +55°C (+5°F to +131°F) without condensation
Weight	120g (4.2oz)
Appearance	Body: ABS resinLens: PE resin
