PA-450E. Đầu báo hồng ngoại 11m/84 độ, trong nhà.

PA-450E. Đầu báo hồng ngoại 11m/84 độ, trong nhà.

  • 654.000 vnd
  • 524.000 vnd
  • Takex/ Japan
  • 12 Month
  • The PA-450E is PIR indoor, wall mount, coverage 11m, corner detection 84o, equipped with tamper and auto-reset memory, high RFI and EMI immunity. Photo MOSFET relay for silent operation, Creep zone eliminates dead-space below sensor. Adjustable coverage pattern to suit different mounting heights. Mode selector for easy setting adjustment. Supply voltage 10-18VDC. Alarm output NO/ NC.
Hướng dẫn sử dụng

HIGH STABILITY
Immunities against Radio frequency, power line noise, Radiation noise and static electricity are improved.

SILENT RELAY
Photo-mos FET switch relay adopted at alarm output.
Completely noiseless by eliminating the movable part which is inside of the relay. At the same time, quick response and long life are maintained.

VARIOUS FUNCTIONS
All the models are equipped with Tamper, Auto-reset memory, photo-mos FET switch.

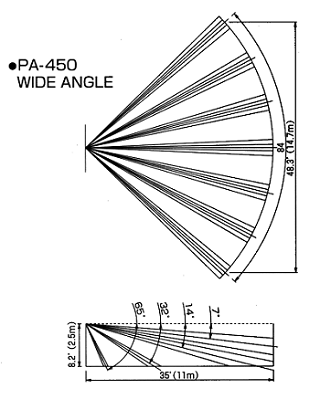

COVERAGE PATTERNS
Vertical curtain version is available (PV-460)

CREEP ZONE
Zone focused directly below sensor eliminates typical "dead" area just under unit.

AREA ADJUSTMENT
The coverage pattern can be adjusted to allow for different mounting heights by moving the inner unit.

MODE SELECTOR
Mode selector enables settings very easy.
1. Pulse count switch
PA-450 allows to set for either two or four pulse count to initiate an alarm output.
2. Alarm LED ON/OFF switch
3. Alarm contact changeover switch
Alarm output is N.O. and N.C. selectable.
4. Memory Switch
Auto-reset memory can be disabled with this switch.

PA-450E



 Model  PA-450E
 Detection system  Passive infrared
 Coverage  Wide angle 11m (35ft) max
 Sensitive zone  18 pairs
 Mounting positions  Indoor use only (ceiling mount with optional BCW-401).
 Supply voltage  10 to 18V DC (non-polarity)
 Current consumption  25mA Max.
 Alarm output  Dry contact relay (N/C, N/O selectable)
 Reset: Approx. 2sec.30V (AC/DC), 0.1A Max.
 (protective resistance 3.3Ω buil-in)
 Tamper output  30V, 0.1A (NC)
 Alarm LED (Red)  Blinking at warm-up
 Lighting at alarm
 Lighting at memory activated
 Lighting at trouble alarm (LED disable)
 Coverage adjustment  Vertically 3 steps
 Pulse count  2/4 changeover
 Alarm memory  3 mins blinking, 47 mins lighting (automatically reset)
 Low voltage notice  Dry contact alarm
 Ambient temperature  -15°C to +55°C (+5°F to +131°F) without condensation
 Weight  120g (4.2oz)
 Appearance  Body: ABS resinLens: PE resin
