OMS-12FE - Đầu Báo Hồng Ngoại ngoài trời, 2 Vùng Kép, 180°x12m.

Old Price 3.835.920 vnd
Price 3.196.600 vnd
CO Takex/ Japan
Warranty 12 Month
The OMS-12FE PIR uses a DUAL ZONE detection system to create 180 degrees of protection with a range of 3 to 12 meters The system initiates an alarm signal only when detection occurs in both the horizontal and downward zones simultaneously preventing false alarms from distant objects or small animals. The rain proof housing and flexible mounting options make the OMS-12FE ideal for outdoor use in both residential and commercial security applications, and the tamper detection feature ensures your security won’t be compromised. Dual-Zone: Up to 12m (40ft) x 180 degrees

Description

OMS-12FE Dual Zone Outdoor PIR, Feature:

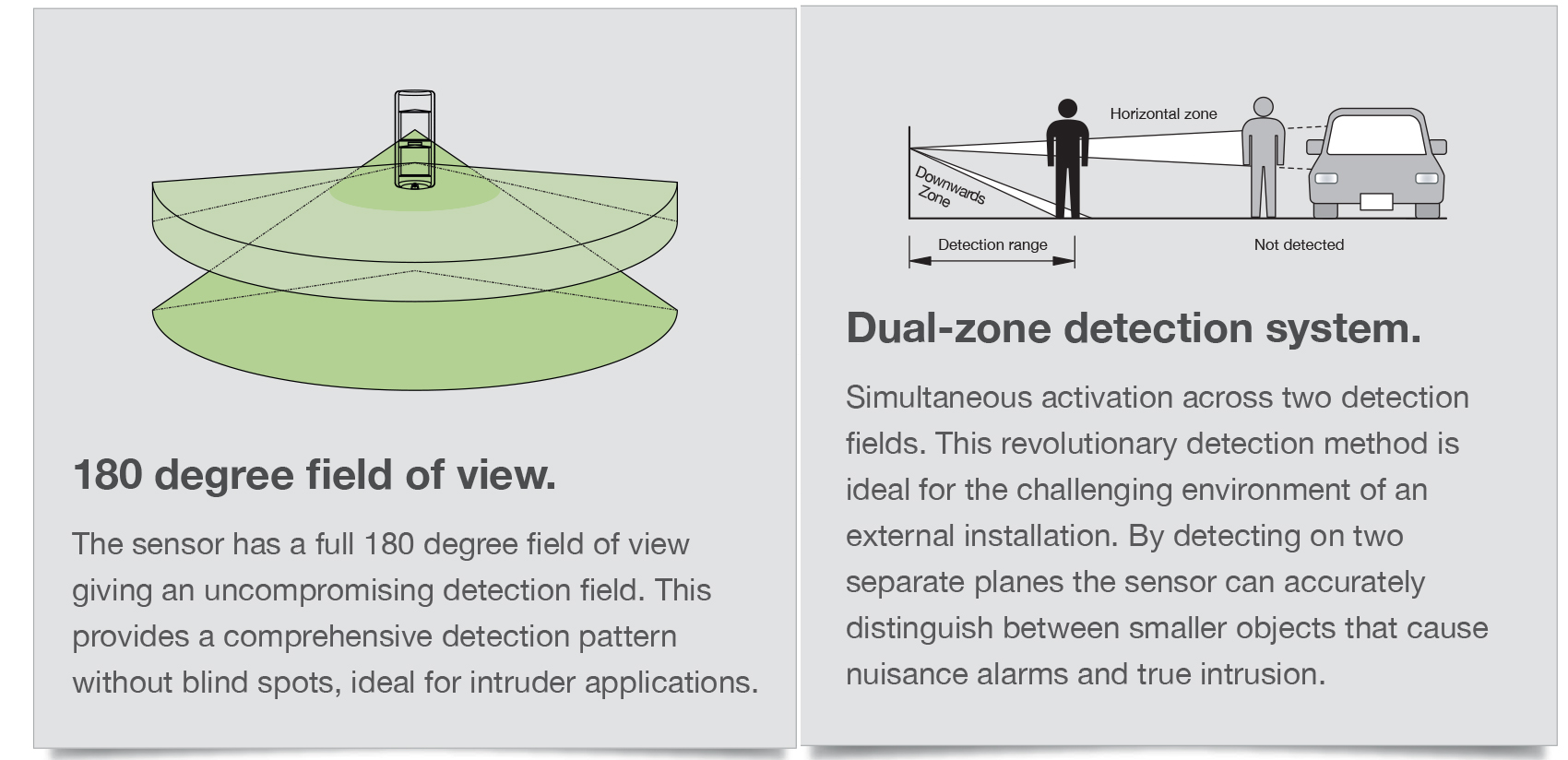

DUAL ZONE system
This sensor is equipped with a DUAL ZONE system which initiates an alarm only when detection occurs in both the horizontal and downward zones simultaneously.
This prevents false alarms from distant automobiles or from small animals.

180 degree wide angle coverage
180 degree coverage detection is possible.
90 degree zone either to the left or right can be disabled.

Rain Proof Housing IP54
Rain-proof structure facilitates outdoor installation.
Various mounting position such as wall and pole can be chosen.

Back Tamper
Use of the provided back tamper rubber enables detection of interference with the sensor,
such as attempts to remove it from the mounting surface.

Sensitivity adjustment
Sensitivity can be adjusted between 30% and 170%.

Various Applications
Residential area. Construction Sites. Retail shop Material yard etc.

RoHS certified compliant
Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyl, Polybrominated diphenyl ether.

OMS-12FE

Model	OMS-12FE
Detection system	Passive infrared
Coverage	When horizontal detection Angle : 180° Detection distance : 40' (12m) Horizontal zone : 14zones Downward zone : 14zones
Coverage adjustment	Horizontal : L/R 90°(selectable) Detection distance : 10'～40' (3m～12m) (By adjusting vertical angle of downward curtain)
Supply voltage	9 to 28V DC (non-polarity)
Current consumption	20mA MAX.
Alarm output	Dry contact relay output N.C./N.O. selectable Contact capacity : 30V (AC/DC), 0.2A MAX. (Resistive load) Contact operation : Detection time(2sec)
Tamper output	Dry contact relay output N.C. *Contact capacity : 30V (AC/DC), 0.1A MAX. (Resistive load)
Operation LED	Red LED Blinking When Initialising Lighting at alarm (option to disable)
Counts selectable switch	1/2/3/4 times (with a switch)
Sensitivity adjustment	*Approx. 30% -Approx. 170% (By Potentiometer)
Connection	Terminals
Ambient temperature	-4°F to + 122°F (-20℃ to + 50℃)
Mounting position	Indoor / Outdoor
Ingress protection	IP 54 (Wall Mount)
Weight	16.5oz (470g)
Appearance	Body : AES resin Lens : PE resin
Optional	Pole attachment : BP-32
