LUNA 126 star - Twilight switch with integrated light sensor

Home page » Product » Sensor THEBEN » Twilight switches » LUNA 126 star. Công tắc cảm ứng ánh sáng, 5 - 200lx, trễ bật/tắt 40s.

Features of LUNA 126 star :

Twilight switch with integrated light sensor
Fixed On and Off switching delay to avoid faulty operation caused by lightning, car headlights etc.
Cable feed from the back and from below
Cover with snap-on function when opening for the straightforward installation of the device
Captive screws
Large terminal area
Brightness value can be set without opening the device
Large light exposure angle (approx. 180 degrees)
Infinitely adjustable switching brightness

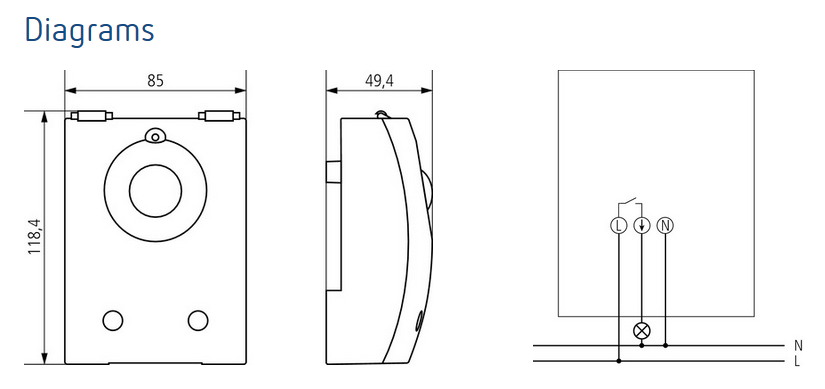

LUNA_126_1

Operating voltage	220 – 230 V AC
Frequency	50 – 60 Hz
Number of channels	1
Stand-by consumption	~0,6 W
Setting range brightness	5 – 200 lx
Switch-on delay	40 S
Switch-off delay	40 S
Type of contact	NO contact
Switching output	Not potential-free (230 V)
Installation type	Wall installation or mast bracket
Type of connection	Screw terminals
Switching capacity	16 A (at 230 V AC, cos φ = 1), 10 AX (at 230 V AC, cos φ = 0.3)
Incandescent lamp load	2300 W
Halogen lamp load	2300 W
Fluorescent lamp load (conventional) not corrected	2300 VA
Fluorescent lamp load (conventional) series-corrected	2300 VA
Fluorescent lamp load (conventional) lead-lag circuit	2300 VA
Fluorescent lamp load (conventional) parallel-corrected	400 VA 42 μF
Energy saving lamps	90 W
Fluorescent lamp load (electronic ballast)	350 W
LED lamp < 2 W	20 W
LED lamp 2-8 W	55 W
LED lamp > 8 W	70 W
Test approval	VDE
