LUNA 111 top2 AL - Surface-mounted light sensor

Home page » Product » Sensor THEBEN » Twilight switches » LUNA 111 top2 AL. Công tắc ánh sáng KTS, 1~99.000lx, trễ: 0~59min.

Features of LUNA 111 top2 AL :

Light level controller
External light sensor included in delivery
Switching brightness digitally adjustable
Adjustable On and Off switching delay
to avoid switching errors caused by lightninh, car headlights etc. Preset 1 minute
Switching brightness and switching delay can be set separately for switching On and Off
Onscreen display of channel and switching status as well as current lux value
DuoFix spring terminals
for 2 conductors per connection terminal
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
Up to 4 sensors can be attached
Up to 10 devices can be connected to a digital sensor
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
Copying programs
Storing programs
External light sensor included in delivery
Extended brightness range
Permanent switching ON/OFF
Test function
(Permanent ON) to check the installation independently of set brightness value
Switching preselection
Display back light (can be turned off)
PIN coding
External input
for switches or buttons
Operating hour counter
with reminder function

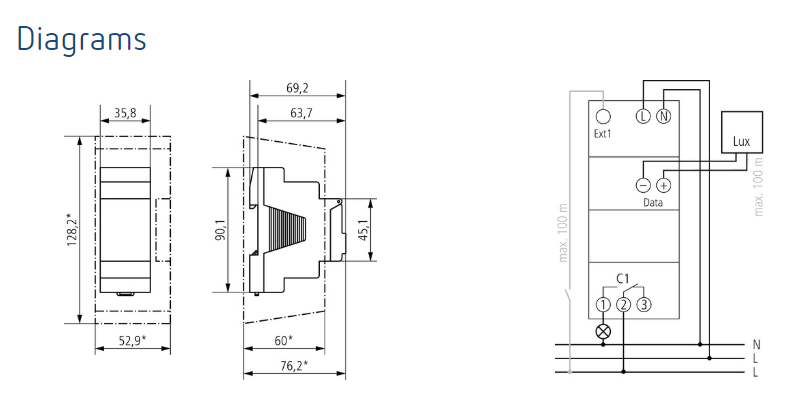

luna_111_top_2_al

Operating voltage	230 – 240 V AC
Frequency	50 – 60 Hz
Number of channels	1
External inputs	1
Stand-by consumption	~1.7 W
Capacity loss max.	1.3 W
Setting range brightness	1 – 99000 lx
Preset brightness value	15 lx
Switch-on delay	0 – 59 min
Switch-off delay	0 – 59 min
Type of contact	Changeover contact
Switching output	Potential-free, not for SELV
Width	2 modules
Installation type	DIN rail
Type of connection	DuoFix spring terminals
Display	LCD-Display
Keyboards	4 touch buttons
Switching capacity	16 A at 250 V AC, cos φ = 1, 10 AX Fluorescent lamp load
Switching capacity min.	ca. 10 mA
Incandescent/halogen lamp load	2600 W
Halogen lamp load	2600 W
Fluorescent lamp load (conventional) not corrected	2300 VA
Fluorescent lamp load (conventional) series-corrected	2300 VA
Fluorescent lamp load (conventional) lead-lag circuit	2300 VA
Fluorescent lamp load (conventional) parallel-corrected	800 VA 80 µF
LED lamp < 2 W	30 W
LED lamp 2-8 W	100 W
LED lamp > 8 W	120 W
Energy saving lamps	170 W
Fluorescent lamp load (electronic ballast)	W
Test approval	VDE
Lichtsensor	Surface-mounted light sensor
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-30°C ... 55°C
Type of protection	IP 20, sensor IP 55
Protection class	II, Sensor III
Max. cable length to sensor	100 m
