LUNA 110 AL 24V - Surface-mounted light sensor

Home page » Product » Sensor THEBEN » Twilight switches » LUNA 110 AL, EL 24V. Công tắc cảm ứng ánh sáng 2-50.000lx

Features of LUNA 110 AL 24V :

Analogue twilight switch
External light sensor included in delivery
Adjustable On and Off switching delay
to avoid faulty operation caused by lightning, car headlights etc.
Display of channel and switching status
DuoFix spring terminals
for 2 conductors per connection terminal
Extended brightness levels and adjustable delay
Five adjustable brightness levels for simple setting of lux value
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
Infinitely adjustable switching brightness

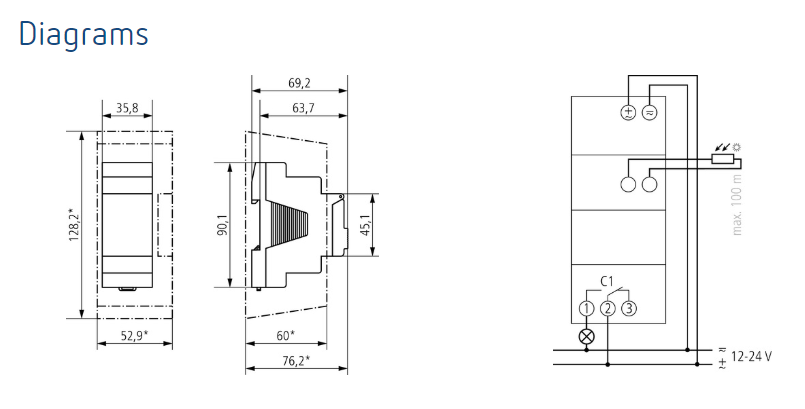

luna_110_al_24v

Operating voltage	12 – 24 V UC
Frequency	50 – 60 Hz
Number of channels	1
Stand-by consumption	~0.2 W
Setting range brightness	2 – 50000 lx
Switch-on delay	0 – 20 min
Switch-off delay	0 – 20 min
Type of contact	Changeover contact
Switching output	Potential-free
Width	2 modules
Installation type	DIN rail
Type of connection	DuoFix spring terminals
Keyboards	3 potentiometers
Switching capacity	16 A at 250 V AC, cos φ = 1, 2 AX Fluorescent lamp load
Switching capacity min.	<10 mA
Incandescent/halogen lamp load	1400 W
Halogen lamp load	1400 W
Fluorescent lamp load (conventional) parallel-corrected	58 W 7 µF
LED lamp < 2 W	W
LED lamp 2-8 W	20 W
LED lamp > 8 W	24 W
Energy saving lamps	W
Fluorescent lamp load (electronic ballast)	1000 W
Test approval	VDE
Lichtsensor	24 V UC \| Surface-mounted light sensor
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-30°C ... 55°C
Type of protection	IP 20, sensor IP 55
Protection class	II, Sensor III
Max. cable length to sensor	100 m
