LUNA 109 EL. Công tắc cảm ứng ánh sáng, 2~2.000lx, trễ bật/tắt: 60/60s.

LUNA 109 EL. Công tắc cảm ứng ánh sáng, 2~2.000lx, trễ bật/tắt: 60/60s.

  • Liên hệ
  • Germany
  • 12 Months
  • LUNA 109 EL - open automatically when dark, off when light, analog technologies. The threshold operation from 2~2000 lux. IP65. Status lights. Load: 16A (cosφ=1), 230V, 50Hz. Delay time fixed (open) of 60 seconds. Use for system public lighting, garden lights, lights, advertising signs,.....
Hướng dẫn sử dụng

Features of LUNA 109 EL :

  • Analogue twilight switch
  • External light sensor included in delivery
  • DuoFix spring terminals
  • for 2 conductors per connection terminal
  • Fixed On and Off switching delay
  • to avoid faulty operation caused by lightning, car headlights etc.
  • Display of channel and switching status
  • Infinitely adjustable switching brightness

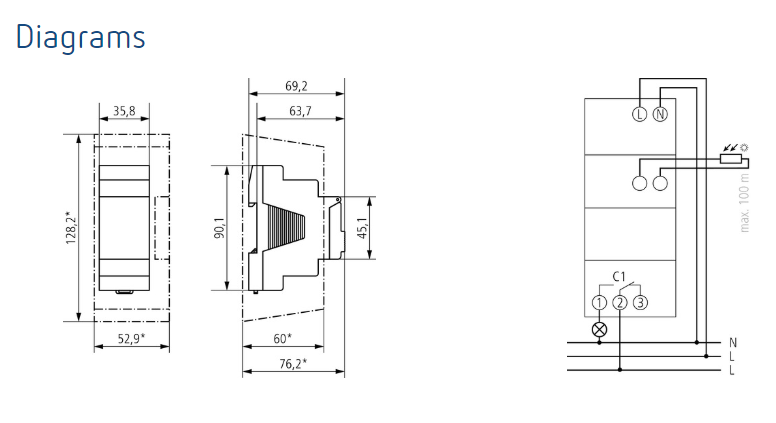

luna_109_el

Operating voltage 220 – 240 V AC
Frequency 50 – 60 Hz
Number of channels 1
Stand-by consumption ~1.1 W
Capacity loss max. 1.4 W
Setting range brightness 2 – 2000 lx
Switch-on delay 60 s
Switch-off delay 60 s
Type of contact Changeover contact
Switching output Potential-free
Width 2 modules
Installation type DIN rail
Type of connection DuoFix spring terminals
Keyboards 1 potentiometer, 1 test button
Switching capacity 16 A at 250 V AC, cos φ = 1, 10 AX Fluorescent lamp load
Switching capacity min. <10 mA
Incandescent/halogen lamp load 2300 W
Halogen lamp load 2300 W
Fluorescent lamp load (conventional) not corrected 2300 VA
Fluorescent lamp load (conventional) series-corrected 2300 VA
Fluorescent lamp load (conventional) lead-lag circuit 2300 VA
Fluorescent lamp load (conventional) parallel-corrected 400 VA 42 µF
LED lamp < 2 W 20 W
LED lamp 2-8 W 55 W
LED lamp > 8 W 70 W
Energy saving lamps 90 W
Fluorescent lamp load (electronic ballast) 300 W
Test approval VDE
Lichtsensor Flush-mounted light sensor
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -30°C ... 55°C
Type of protection IP 20, sensor IP 65
Protection class II, Sensor III
Max. cable length to sensor 100 m
