FS-5000E. Đầu báo lửa, 10~30Vdc, ngoài trời.

GENERAL DESCRIPTI0N
Flame sensor FS-5000E immediately detects ultraviolet rays contained in flames and activates an external output.
Weather proof construction of the housing enables application outdoors. lt can be widely used for fire prevention of areas where fire is prohibited.

8 SELECTABLE SENSITIVITY LEVELS
*2 sensitivity settings High & Low
*4 detection timer settings : 1 sec., 6 sec., 15 sec., 30 sec.
Possibility of false alarms can be reduced.

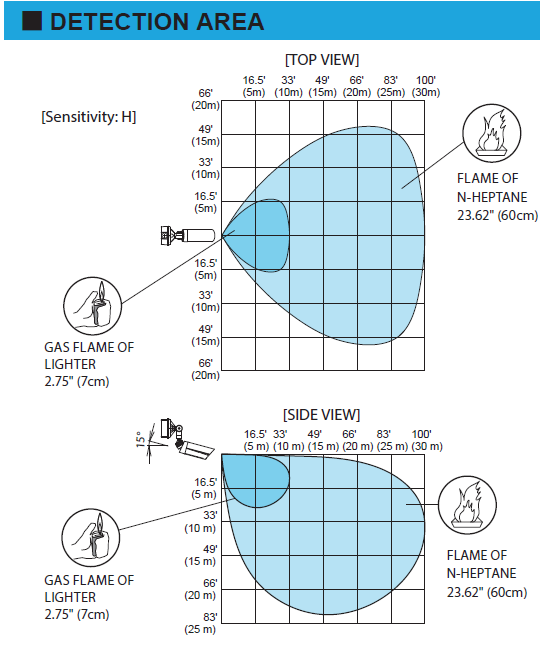

The set up can be selected from the 8 levels according to the environment of installation.
Area masking enables elimination of unnecessary detection areas.

WHITE BODY MATCHES EVERY LOCATION
Aesthetically pleasing white housing blends well with most surroundings. The unique ball lock mechanism allows for adjustment of the detection area after installation.

CONVENIENT FUNCTI0NS
･ Alarm memory function
Memory indication function enables identification of individual sensors in multiple sensor on configuration.
After raising an alarm, the memory indication LED blinks for 3 minutes and then lights for 47 minutes.
･ Day/night time discernment function
By adjusting operation mode control switch, output operation can be controlled according to ambient light level. Selectable for night time only. (5lux - ∞ lux)
･ Output time set up
Time of detection output operation can be adjusted by a switch [off delay selectable approx. 2 sec. - 1 min. or approx. 5 see. - 10 min.]
