FS-2000E. Đầu báo lửa, khoảng cách 10m, 120 độ, 10~30Vdc

FS-2000E. Đầu báo lửa, khoảng cách 10m, 120 độ, 10~30Vdc

  • 4.620.000 vnd
  • 3.850.000 vnd
  • Takex/ Japan
  • 12 Months
  • The FS-2000E sensor quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound plus an open collector output.
Hướng dẫn sử dụng

OPERATION SET-UP BY DETECTION TIMER
The alarm will be activated only when the sensor detects a flame (ultraviolet rays) in accordance with the detection timer.
4 detection times are selectable by a slide switch on the sensor. <0.2 sec., 1 sec., 6 sec., 30 sec.,>

OTHER FUNCTIONS
*Internal alarm sound, which is greater than 80dB at 3.3ft. (1m) in front of the sensor, and it can be turned off.
*Tamper output.

FORM C EXTERNAL OUTPUT
With a Form C output, FS-2000E can be connected to a Fire / Security control panel. Also the output signal can be used to initiate a warning device, such as CCTV surveillance as a part of advanced security system.

ALARM MEMORY
It can be easily identified by Alarm memory indication which sensor is activated. Memory LED on the sensor blinks for 3 min. and lights on for 47 min. after alarm activation.

PROTECTION AREA ADJUSTMENT
Compact design (φ120mm) enables FS-2000E to be installed at any location. Easy separation of the sensor body from the base simplifies installation and maintenance.
In addition, wide selections of protection area setting are available with protection area adjustment.

FS-2000E

 Model  FS-2000E
 Detection system  Ultraviolet rays detection. (detected wave length 180~260nm)

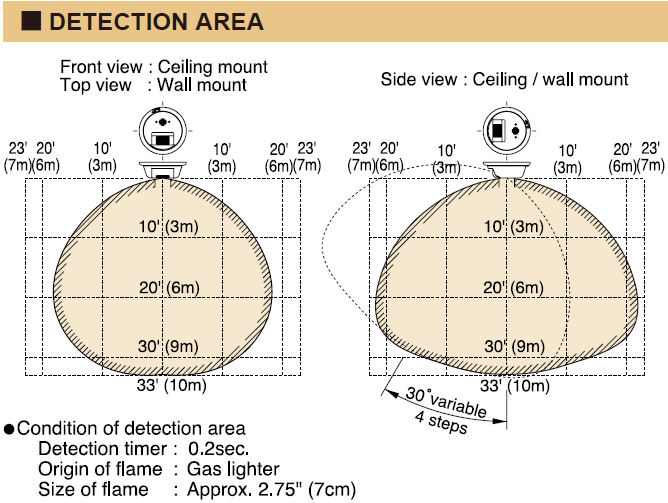

 Detection area  Distance: 10m (33ft) max. (7cm flame)
 Angle: approx. 120 degrees conically
 Adjustment range
  · Horizontal 25 degrees by base unit
  · Vertical 30 degrees (4 steps) by sensor head
 Sensitivity adjustment  Detection timer 4 steps (0.2/1/6/30sec)
 Power supply  10V to 30VDC (non-polarity)
 Power consumption  Standby: 25mA or less
 Alarm: 75mA or less (sound ON) / 40mA or less (sound OFF)
 Alarm output  Dry contact relay Form C (NO/NC)
 Contact action: off-delay (approx. 2 sec.)
 Contact capacity: 30V (AC/DC) 0.3A, (protective resistance 3.3Ω)
 Alarm memory  Auto-reset operation (on/off setting available)
 Memory LED blinks for 3min., then lights for 47min.
 LED  Alarm LED (red): light on for off-delay 10 sec.
 Memory LED (yellow): light on for memory, blinks at start-up
 Buzzer  Alarm: intermittent every 0.2 sec during off delay 10 sec
 Volume: 80dB or more 1m (3.3ft) ahead (silent setting available)
 Tamper output  Dry contact relay form b (NC)
 Capacity: 30V (AC/DC) 0.1A
 Wiring  Terminals
 Ambient temperature  -10°C to +60°C (+14°F to +140°F)
 Installation  Indoor (ceiling or wall mount)
 Weight  Approx. 150g (5.3oz)
 Appearance  ABS resin (white)
 Supplied accessories  · Sensor locking screw: 1pc
 · Tapping screw: 2pcs
