DA-301E - Cảm Biến Cửa Tự Động

DA-301E - Cảm Biến Cửa Tự Động

  • Liên hệ
  • Japan
  • 12 Month
  • DA-301E Automatic door sensor detects motion or presence of a person or object by transmitting and receiving an infrared beam and emitting control signals that open and close the door. Its sleek, compact design, with adjustable monitor area and sensitivity is ideal for automatic door control. The product has a variety of colors to choose from, depending on where you are installing
Hướng dẫn sử dụng

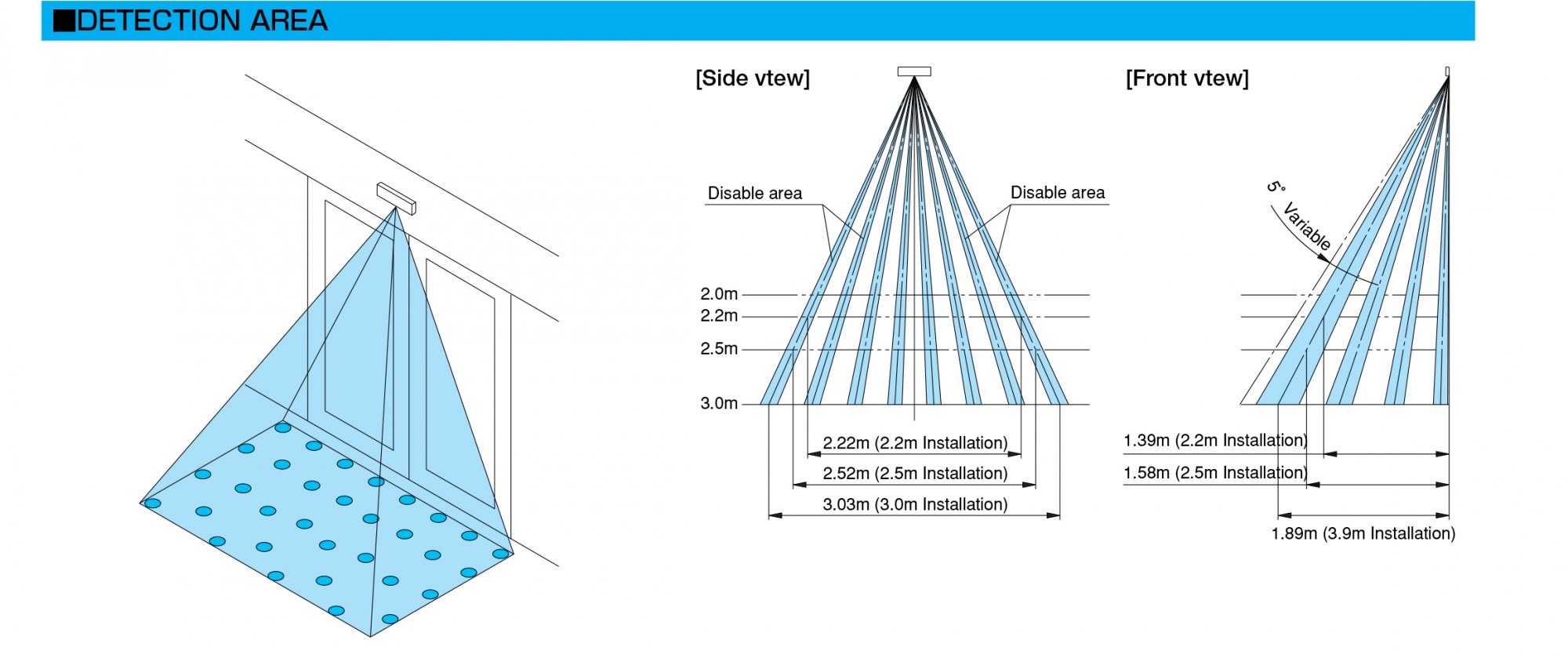

  • The detection area consists of 4 lines, each with 8 zones (total 32 zones), each line can be turned on and off for large area monitoring and can be adjusted easily.
  • Occurrence time may vary
  • Can use AC or DC power
  • Self-monitoring feature
  • There are four frequencies that eliminate noise when multiple sensors are placed close to each other
  • Intrusion-resistant flying mode
  • Various colors​301E

Detection system                                                            Near infrared beam

Max. installation height                                                               3m

Sensitivity adjustment                                                          Adjustable

Frequency                                                               4 frequencies selectable with a dip switch

Area adjustable range                                               Main body adjustable angle: 0°to 5°
                                                                                    Pattern depth: 1 line to 4 lines
                                                                                    Pattern width: adjustable by Area switch

Power supply                                                         100V AC±10% 50/60Hz or 12V to 24V AC/DC±10%

Power consumption                                                          1.8VA or less or 80mA or less

Contact output                                                    Dry contact relay N/O, 50VDC 0.1A or less (Resistive load)

Output holding time                                                                          Approx. 0.5sec.

Presence timerl                                                         Selectable with a dip switch (2sec., 15sec., 60sec. or )

LED                                                                                         Detection: Red Operation: Green
                                                                                                Attenuation: Orange Trouble: Red and Green

Ambient temperature                                                                      ー20°C to +60°C

Weight                                                                                                      190g
